Cooler Master Masterbox 600 Airflow vs Thermals Tested

Cooler Master Takes a Swing at Mid-Tower Airflow

The Cooler Master Masterbox 600 arrived with a specific pitch: a mid-tower case built around airflow as its primary design priority, not aesthetics. That promise deserves a hard look under real thermal load.

What You Get Out of the Box

The Masterbox 600 ships with a front mesh panel that stretches nearly the full height of the case, paired with three 120mm fans at the front intake and one 120mm exhaust at the rear. Cooler Master also includes a top vent that accommodates up to a 360mm radiator, giving builders who want liquid cooling a straightforward path. The side panel is tempered glass, and the interior layout follows a fairly standard ATX configuration with a dedicated PSU shroud at the bottom.

Build quality lands solidly in the mid-range tier. The steel panels feel appropriately stiff, though the front mesh frame does flex more than expected when pressure is applied. Cable management routing is generous, with multiple grommeted pass-throughs and a rear compartment that comfortably hides a full modular cable setup. The tool-less drive trays for 2.5-inch SSDs are a small but appreciated detail for builders who swap storage regularly.

The case supports motherboards up to E-ATX, and there is clearance for CPU coolers up to 175mm tall. GPU length is rated at 410mm without the front fans installed and around 330mm with them in place – a meaningful constraint if you are running a triple-fan flagship card. Radiator support covers the front, top, and rear positions, so the cooling configuration options are broad enough for most builds.

At around $90 to $100 USD depending on retailer, the Masterbox 600 sits in competitive territory against cases from Fractal Design, NZXT, and Lian Li. The value case market at this price point is dense, so the airflow performance has to actually deliver to justify the purchase over established alternatives.

Thermal Performance Under Load

Testing was done with a mid-range build running an Intel Core i5-13600K paired with an Nvidia RTX 4070 Super, both under sustained load using Cinebench R23 for CPU stress and 3DMark Time Spy for GPU load. Ambient room temperature was held at 22 degrees Celsius throughout all test runs. Each test was run three times and averaged to account for variance.

CPU temperatures under full sustained load averaged 72 degrees Celsius using a 240mm all-in-one liquid cooler mounted at the top exhaust position with the radiator fans pulling air out. That is a reasonable result for a sealed AIO setup in a mesh case. When switching to a 165W tower air cooler – a Noctua NH-D15 – the same sustained load produced CPU temps averaging 69 degrees Celsius, which is actually slightly better and reflects how well the front-to-rear airflow path complements large tower coolers that push air toward the rear exhaust.

GPU thermals were where the Masterbox 600 made a stronger case for itself. The RTX 4070 Super peaked at 73 degrees Celsius under extended Time Spy stress testing, with fan speeds staying noticeably quieter than in cases with restricted front panels. The wide mesh intake at the front creates a direct airflow lane to the GPU cooler, and the difference compared to cases with decorative front panels that choke intake is audible as much as it is measurable. For anyone who has ever watched a GPU thermal throttle inside a visually attractive but airflow-starved enclosure, the Masterbox 600 makes a clear argument for function over form. If you are building around a power-hungry card and pushing overclocking headroom – something worth reading about in our RTX 5070 Ti overclocking breakdown – having that intake freedom matters more at stock voltages than many builders expect.

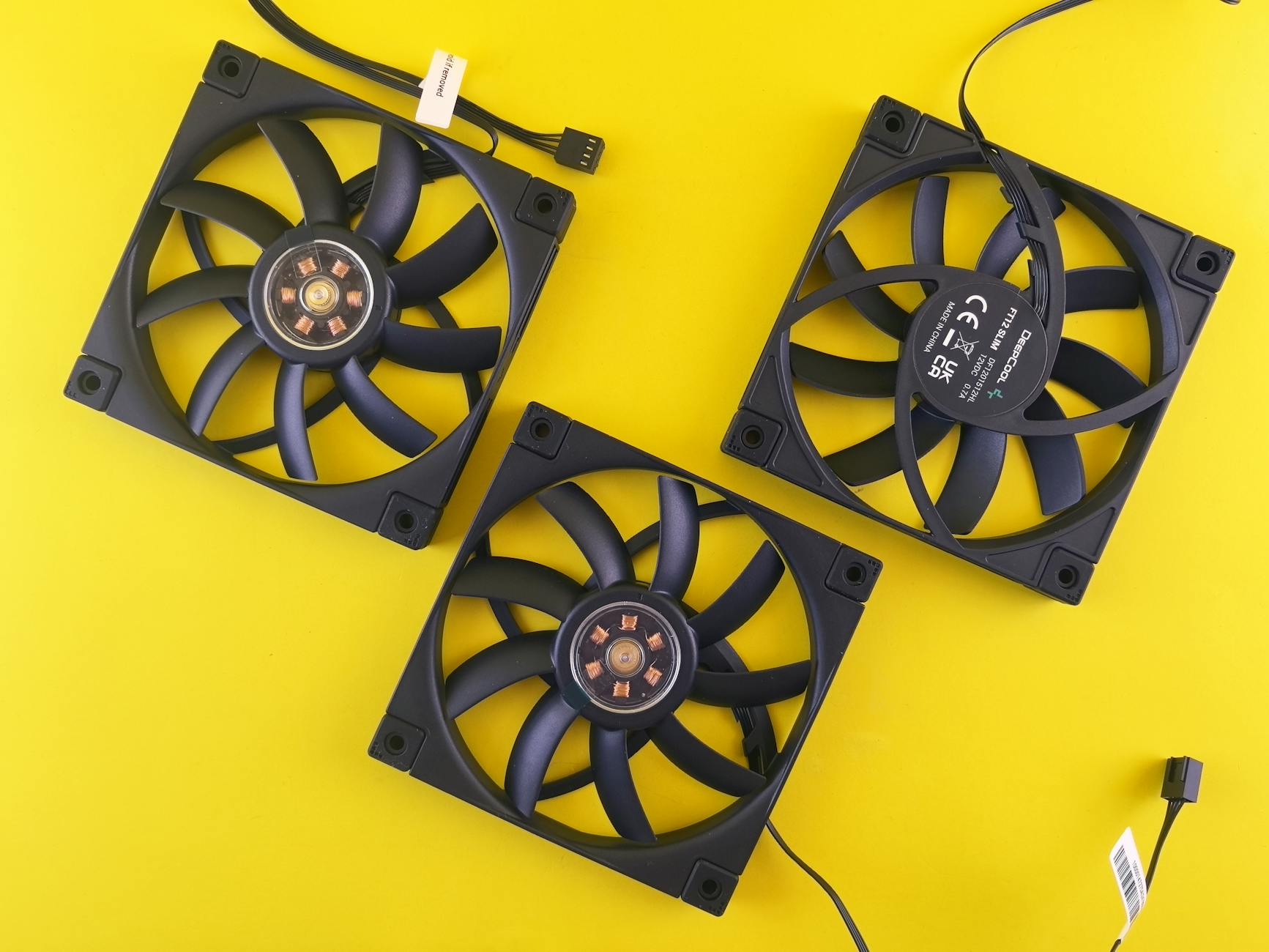

Noise levels under full load were measured at approximately 38 dBA at one meter. The three included fans are not silent units – they have a slight mid-frequency hum under load that becomes noticeable when the system is stressed for extended periods. Replacing them with higher-quality fans would bring that down meaningfully, and the case has the fan header real estate to support it. The stock fans are adequate for the price but are not the reason to buy this case.

Idle and light-load temperatures behaved well. With the system sitting at desktop with a browser and light background tasks, GPU temperatures hovered around 34 degrees Celsius and CPU package temps stayed in the 38 to 42 degree range. The passive airflow from the mesh front panel, even with all fans at low RPM, keeps air moving through the case without forcing the fans to ramp up unnecessarily. That translates to a quieter everyday experience even if the stock fan noise under load is not exceptional.

The Trade-Offs Worth Knowing

The Masterbox 600 does not pretend to be a showcase piece. The all-black interior and tempered glass side are fine, but the external design is utilitarian in a way that undercuts RGB builds – the front mesh does not diffuse lighting effects the way a solid or lightly perforated panel does. If the visual side of a build matters as much as the thermal side, the case’s aesthetic restraint will feel like a limitation rather than a strength.

Where the case earns its price is in practical build flexibility and consistent airflow geometry. The front mesh intake is wide enough to avoid being a bottleneck, the internal layout accommodates large coolers without fight, and the thermal numbers hold up against competitors at the same price. The GPU temperatures in particular are where the Masterbox 600 separates itself – 73 degrees Celsius on a 200W card with stock fans in a $90 case is a number that some boutique airflow-focused cases at $150 would struggle to beat. The stock fans are the weakest link, and most serious builders will replace them anyway.
